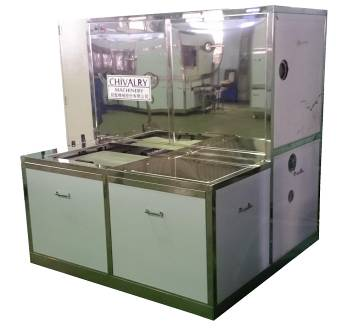

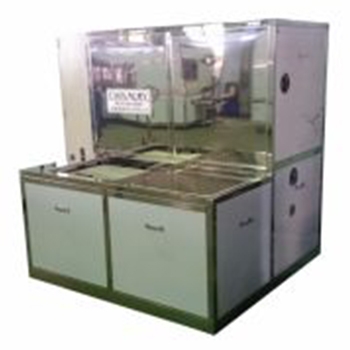

Vacuum steaming /drying machine CH-HVVD
.png)
- Description：
- Use steam as a cleaning solvent step last check, the workpiece surface to be cleaned so that dirt is washed down completely, to achieve fairly clean cleaning effect.
- Steam cleaning, utilizing accumulated heat of the workpiece itself, directly into the vacuum-dried, so that the workpiece 100% complete drying effect.
- Solvent vapor is condensed and then recycled, do not waste
- Can use both the recycling machine, a multi-purpose machine, most suitable for small batch and online direct cleaning of choice
- Suitable items： good workpiece cleanliness requirements & drying requirements of use
- Solvent： Hydrocarbon solvent (water carbonation hormone) and other non-aqueous solvents with risk of low flash point are idea for this type of washing machine!
- Cycle time：5~10min/ cycle .
- Cleaning Process：Vacuum vapor cleaning/Vacuum drying
- Characteristic：
- Security ：Low pressure chamber, works with safety, explosion proof & low solvent consumption.
- Environmental protection：VOC atmospheric emissions far below standard, in line with ROHS or any other of the environmental norms
- A variety of functions: Vapor cleaning, drying, recycling. Using the same equipment, without additional purchase the recycling machine
- Cleanliness is good: Vapor cleaning the workpiece cleanliness significantly improved to meet any severe precision cleaning requirements
- 100% Drying: 100% vacuum drying the workpiece after drying
- No oxidation: no oxidation occurs after cleaning.
|
Cleaning basket |
||||
| Quartet basket | Hexagon roll basket | Scroll box basket | ||
 |
 |
 |
||
| Cleaning procedures | ||||
| Gate opening→ | Into the basket→ | Gate closed and vacuum -starts cleaning | ||
 |
 |
 |
||
|
Vacuum steaming washing&Vacuum drying procedures |
||||
| Steaming into→ | Steaming washing→ | Vacuum drying→ | ||
 |
 |
 |
||
| Compare Clearness | ||||
| Normal cleaning& Hot mind drying |
Vacuum Steam Washing/Vacuum Drying |
|||
 |
 |
|||
|
CH-HVVD |
||
| 型號model | 80 | R80 |
| Roll & Shake system | NO | Have |
|
Quartet basket (L*W*H) |
480*380*268mm | 400*380*130mm |
| Basket size (shaking system) | NO | 270*310*125mm or 60*310*175mm |
| rotary barrel size | NO | Ø321*L310mm |
| power supply | 14.25kw | 14.5kw |
| Dimension (L*W*H) | 1800*1480*1882mm | |
| Operating heigh | 863.5mm | |
| Control system | PLC+ touch panel | |
| detergent | Hydrocarbon solvent and other non-aqueous solvents | |
| Temperature detection | exceeds the set temperature alarm | |
| Level detection | KEYENCE electro-optic level sensor | |
| Tank-Dimension (L*W*H) | 530*430*400mm | |
| Power supply | 220V/380V/415V/440V*3Ø | |
| Cycle time | 5~10min/cycle | |
| Equipment Material | SUS304 | |
| Vacuum value | -720mmHg以上 | |
| Cooling water (from buyer) | ＜25℃、≧1.5kg/cm2、≧100L/min | |
| CDA(from buyer) | ≧7kg/cm2 | |
|
Ventilation (from buyer) |
Diameter of Ventilation Port ：Ø6” Ventilation should be equipped with pipe and is connected by buyer himself. |
|
 |
