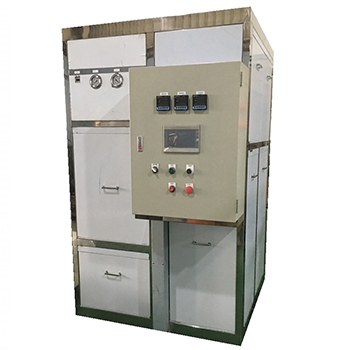

Continuous vacuum explosion-proof recovery machine CH-HVR-200
Continuous vacuum explosion-proof recovery machine CH-HVR-200
| Project |
Specification |
|
Purpose
|
- This machine is mainly used in washing agent such as petroleum-based, chlorine alcohols, ketones, xylene, etc. After extraction or mixed with other dirt after washing, via this machine using method of vacuum distillation, washing agent become clean again after recycling! This application is suitable for manufacturers who use large amount of solvent. It can be acted as both environmental friendly tool as well as reducing cost on solvent!
|
|
Suitable
|
- Any organic solvent can be recycled.
|
| Features |
- Explosion-proof type, high safety.
- Vacuum distillation, fast operation.
- PLC+HMI automatic operation.
- Can be automatically divided into batches and continuous operation.
- Low price and simple operation.
- The residue of the distillation tank can be discharged automatically.
- 24-hour continuous operation.

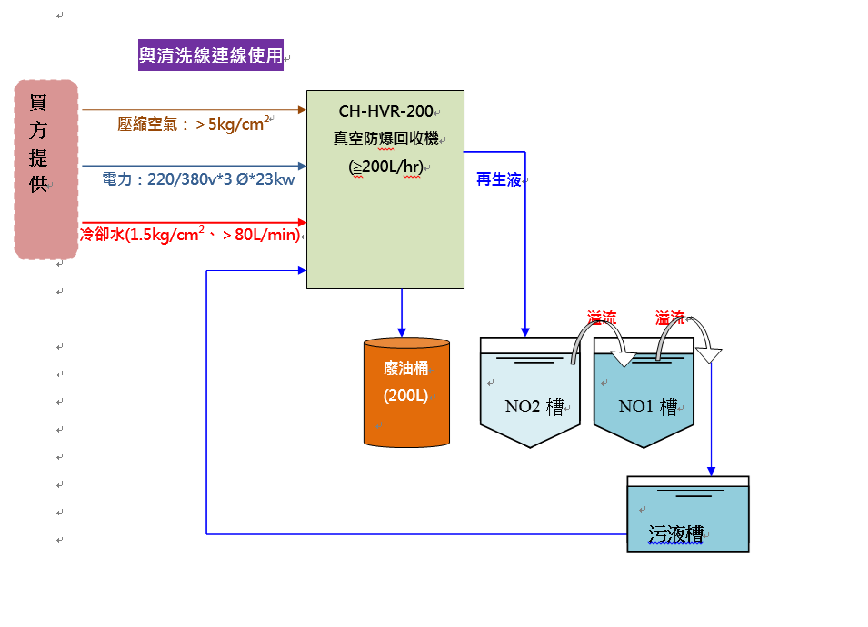

- It can be directly connected to the cleaning line.
- Any organic solvent can be recovered.
|
| Specification Table |
| Project |
Specification |
|
Dimensions
|
1200(L)*1200(W)*2000(H)mm |
|
Recovering rate
|
98-99.9%
|
|
Recovering volume
|
≧180L/hr |
| Power consumption |
23KW
|
| Heating method |
Indirect heating by hot kerosene
|
|
Compressed air
|
>5kg/cm2 |
|
Cool water
|
≧1.2kg/cm2、≧80L/min
(The pressure loss of the equipment is 1.5kg/cm2, so
the raw water into the liquid needs to be ≧2.7kg/cm2) |
|
power supply
|
220V/380V*3Ø
|
